Data Physics SignalCalc Vibration Signal Analyzer
주요 사양
- 2 to 4 channels
- Maximum SampleRate: 102.4 kHz standard (204.8 kHz optional)
- Maximum useful Frequency: 40 kHz standard (94 kHz optional)
- ADC Resolution (Analog AAF): 24-bits
- Sample Resolution (Digital AAF): 32-bit floating point
- Coupling: AC/DC, DIFF/SE. ICP, TEDS
- Anti-alias Filters: 100 dB protection, all ranges
- Dynamic Range: 120 dB
- Input Ranges: 0.1, 1, 10 V Full Scale (20 V optional)
- Phase Accuracy: 0.05º to 0.5º for DC to 40 kHz
- Tachometer input : 1 channel, max 200kHz
- Output : 1 or 2 channels, 24-bit resolution
- Maximum SampleRate: 102.4 kHz standard (204.8 kHz optional)
- Maximum useful Frequency: 40 kHz standard (94 kHz optional)
- ADC Resolution (Analog AAF): 24-bits
- Sample Resolution (Digital AAF): 32-bit floating point
- Coupling: AC/DC, DIFF/SE. ICP, TEDS
- Anti-alias Filters: 100 dB protection, all ranges
- Dynamic Range: 120 dB
- Input Ranges: 0.1, 1, 10 V Full Scale (20 V optional)
- Phase Accuracy: 0.05º to 0.5º for DC to 40 kHz
- Tachometer input : 1 channel, max 200kHz
- Output : 1 or 2 channels, 24-bit resolution

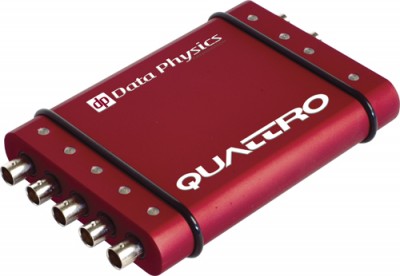

[QUATTRO]

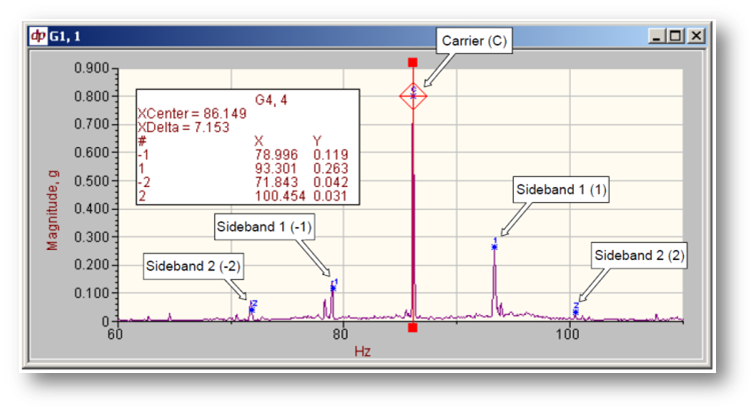

• 진동, 소음, 충격등의 다이나믹 신호를 FFT 분석하는 최적의 솔루션
• 최대 샘플링 204.8 kHz, 측정주파수 40kHz까지가능

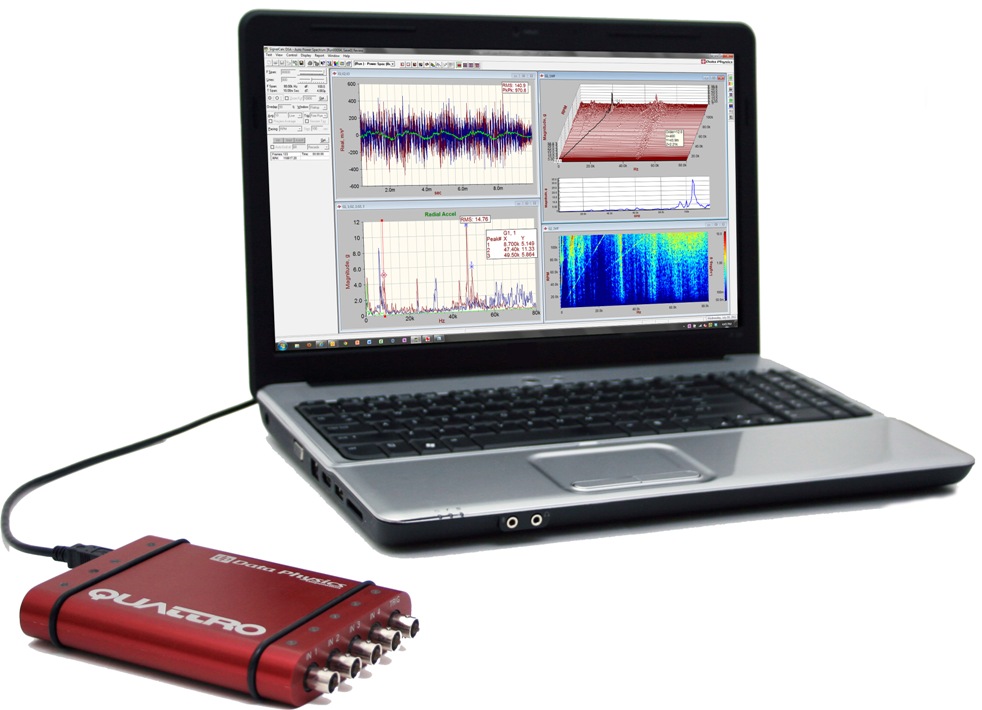

• USB 전원 공급이 가능하여 휴대가 용이
